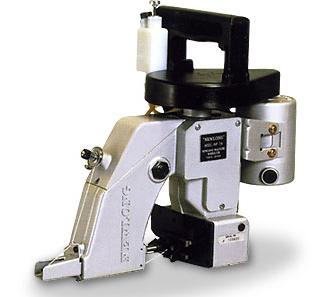

| REVOLUTION | 1,700+200r.p.m. |
| STITCH LENGTH | 8.5(3 per inch) fixed |
| NEEDLE | DN x 1 - #25 |
| WEIGHT (KGS) | 6(13 lbs) with thread |
| DRIVE MOTOR | 65W 50/60Hz, 1-ph. 12V,24V,110V,220V or 240V(please specify one when ordering.) |

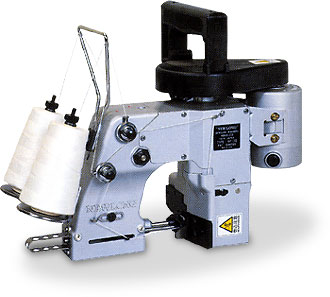

| REVOLUTION | 1,350150r.p.m. |
| STITCH LENGTH | 8.5(3 per inch) fixed |
| NEEDLE | DN x 1 - #25 |
| WEIGHT (KGS) | 6.5(14 lbs) with thread |
| DRIVE MOTOR | 60/65W 50/60Hz,1ph12V. 24V,110V,220V or 240V. (please specify one when ordering.) |
Single needle machine for plain closing of all kinds of filled bags made of multi-wall paper, PP/PE woven cloth, jute, cotton bags, etc. Equipped with mechanically operated continously running thread chain cutting knives. The operator has to guide the thread chain between these knifes for cutting the thread chain at the end of the seam.
| Head Models | DS-2II |
| Revolution (rpm) | 1,400 |
| Stitch range (mm) | 7-12 |
| Oiling system | manual |
| Needle | DRX2 #25-26 |
| Thread | 20/6,20/9 |
| Cutter | mechanical |
Two-needles machines for plain closing of all kinds of filled bags. This model is a variation of Model DS-2(II), and is recommended to prevent leakage of the product by providing strong double seams.
Needle clearance is 6mm between seams and 6.5mm in feeding direction.
Single needle machine exclusively designed for crepe-tape bound closing of filled bags made of multi-wall paper. Equipped with mechanically operated lever controlled cutting mechanism for automatic cutting of crepe-tape.
| Head Models | DS-C |
| Revolution (rpm) | 1,400 |
| Stitch range (mm) | 7-11 |
| Oiling system | manual |
| Needle | DRX2 #25-26 |
| Thread | 20/6,20/9 |
| Cutter | mechanical |
The fastest single needle bag closing machine (2,700 rpm) for all kinds of filled bags. Well balanced rotational parts ensure very little vibration. Ideally suited for use with high speed bag filling lines where conveyor speeds of 25 m/min. can realistically be achieved. Interchangeable with most existing sewing heads. All parts are protected against the effect of dust. A unique but simple enclosed oil bath lubrication system greatly extends the life of moving parts and reduces maintenance cost. Model DS-9A is for plaing closing, equipped with mechanically operated thread cutter like Model DS-2(II). While Model DS-9C is automatic machine for both plain & crepe-tape bound closings, equipped with air operated cutter.
| Head Models | DS-9C |
| Revolution (rpm) | 2,700 |
| Stitch range (mm) | 7-10.5 |
| Oiling system | automatic |
| Needle | DR-H30 #26 |
| Thread | 20/6,20/9 |
| Cutter | pneumatic |

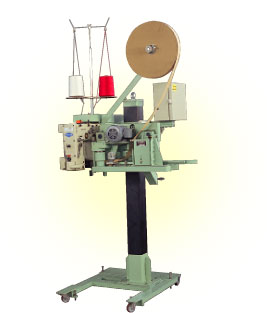

NEWLONG offers the latest in bag closing technology with the A1-PB height adjustable pillar; DS-9C high speed, oil enclosed sewing head. Available for both plain sewn and crepe-tape bound closure. This closing system can be used with a range of NEWLONG conveyors or an existing conveyor. Automatic infeed devices, Model CM4900-3, CM4900-1, and CP4900 can be mounted on Model A1-PB(DS-9C) pedestal type bag closing machine.
| A1-PB(DS-9C) | |
| Revolution (rpm) | Max.2,700 |
| Stitch range (mm) | 7-10.5 |
| Thread | synthetic resin |
| Cutter | pneumatic |
| Oiling system | automatic oil bath system |
| machine weight | 320 |
